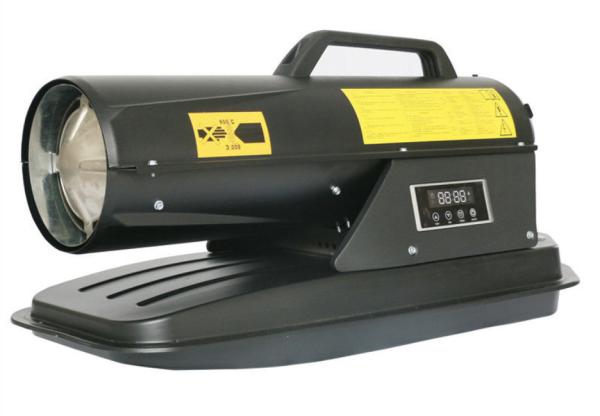

Advantage of Our Diesel and Kerosene Forced Air Heater
1. Mobile air heater
2. Function on diesel or Kerosene
3. Stainless steel combustion chamber with automatic cooling
4. Pneumatic atomizing burner make complete combustion
5. Build-in magnetic valve, reduce smoke, prolong cooling after heating
6. Build-in Adjustable thermostat control from 5-55°C
7. Build-in Pressure gauge and Fuel gauge
8. Digital display for Room temp & Desired temp
9. Photoelectric flame sensor, auto shut-off device
10.Safety overheating protection
Energy: Diesel , Kerosene
Heating method: Air Heater, hot air flow
With overheating protection device, over-temperature shutdown, security protection.
Fan-assisted heating, strong winds.
Small size, high heat resistant plastic handle
Advantages: easy to move , without consumption of oxygen, tasteless smokeless , moisture-free , low noise, good thermal effect , fast heat delivery
The metal shell is insulated and used safely, standing and moving freely.
Grade of Waterproof :IPX4
Specification of our Diesel Forced Air Heater
| Power |
20KW |
30KW |
50KW |
65KW |
| Model |
XDFT-20 |
XDFT-30 |
XDFT-50 |
XDFT-65 |
| Electric Supply |
220-240V-50HZ |
220-240V-50HZ |
220-240V-50HZ |
220-240V-50HZ |
| Output |
17200Kcal/h |
25800Kcal/h |
43000Kcal/h |
60200Kcal/h |
| Output |
69000Btu/h |
105000Btu/h |
170600Btu/h |
238840Btu/h |
| Motor Power |
250W |
250W |
340W |
430W |
| Air Displacement |
595m3/h |
720m3/h |
1100m3/h |
1300m3/h |
| Heatted Area |
100-200m2 |
200-300m2 |
300-400m2 |
500-600m2 |
| Fuel Consumption |
1.7Kg/h |
2.5Kg/h |
4.0Kg/h |
5.8Kg/h |
| Fuel Tank Capacity |
19L |
38L |
56L |
69L |
| Products Size |
850*350*340mm |
970*385*370mm |
1140*415*415mm |
1310*430*430mm |
| Packing Size |
950*400*420mm |
1070*435*450mm |
1240*465*495mm |
1410*480*510mm |
| N.W. |
16.2Kg |
22.0Kg |
30kg |
39.5kg |
| G.W. |
18.5Kg |
24.5Kg |
32.5kg |
42kg |
